stm32_gpio.h File Reference

board specific defines More...

#include <stdint.h>
#include <string.h>
#include "heivs/error.h"
#include "stm32/stm32f4xx_gpio.h"

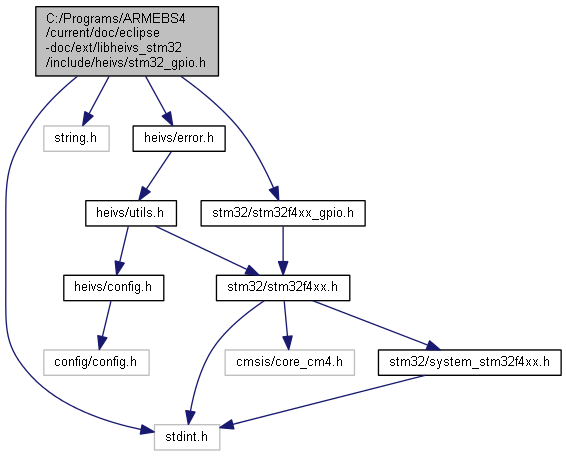

Include dependency graph for stm32_gpio.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	gpio_t
	GPIO control structure. More...

Macros
#define	GPIO_NC
	Unconnected pin.
#define	DEF_GPIOA(__PIN, __MODE)
	Helper for defining a pin. More...
#define	DEF_GPIOB(__PIN, __MODE)
	same as DEF_GPIOA for port B
#define	DEF_GPIOC(__PIN, __MODE)
	same as DEF_GPIOA for port C
#define	DEF_GPIOD(__PIN, __MODE)
	same as DEF_GPIOA for port D
#define	DEF_GPIOE(__PIN, __MODE)
	same as DEF_GPIOA for port E
#define	DEF_GPIOF(__PIN, __MODE)
	same as DEF_GPIOA for port F
#define	DEF_GPIOG(__PIN, __MODE)
	same as DEF_GPIOA for port G
#define	DEF_GPIOH(__PIN, __MODE)
	same as DEF_GPIOA for port H
#define	DEF_GPIOI(__PIN, __MODE)
	same as DEF_GPIOA for port I

Enumerations
enum	gpio_mode_e {   GPIO_INPUT,   GPIO_OUTPUT,   GPIO_OUTPUT_0,   GPIO_OUTPUT_1,   GPIO_AF,   GPIO_AN,   GPIO_PP,   GPIO_OD,   GPIO_SPEED_2,   GPIO_SPEED_25,   GPIO_SPEED_50,   GPIO_SPEED_100,   GPIO_NOPULL,   GPIO_PULLUP,   GPIO_PULLDOWN }
	GPIO modes, can be ORed. More...

Functions
status_e	gpio_setup (const struct gpio_t *gpio)
	Setup a gpio. More...
status_e	gpio_setup_list (const struct gpio_t gpio[], size_t len)
	Setup an array of gpio. More...
static GPIO_TypeDef *	_internal_gpio_get_ctrl (const struct gpio_t *gpio)
	Get the gpio controller given the gpio struct.
static void	gpio_toggle (const struct gpio_t *gpio)
	Toggle a gpio line. More...
static uint32_t	gpio_get (const struct gpio_t *gpio)
	Get gpio level. More...
static uint32_t	gpio_get_internal (const struct gpio_t *gpio)
	Get gpio internal level. More...
static void	gpio_set (const struct gpio_t *gpio, uint32_t value)
	Set a gpio. More...
static void	gpio_set_direction (const struct gpio_t *gpio, enum gpio_mode_e dir)
	Set a gpio direction. More...

Detailed Description

board specific defines

Author

marc dot pignat at hevs dot ch

Definition in file stm32_gpio.h.
