stm32f4xx_gpio.h File Reference

This file contains all the functions prototypes for the GPIO firmware library. More...

#include "stm32/stm32f4xx.h"

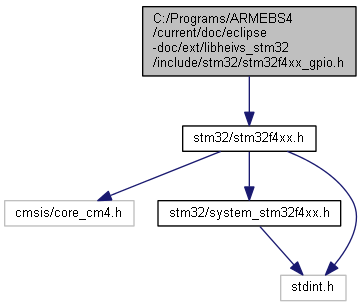

Include dependency graph for stm32f4xx_gpio.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	GPIO_InitTypeDef
	GPIO Init structure definition. More...

Macros
#define	GPIO_AF_RTC_50Hz
	AF 0 selection.
#define	GPIO_AF_TIM1
	AF 1 selection.
#define	GPIO_AF_TIM3
	AF 2 selection.
#define	GPIO_AF_TIM8
	AF 3 selection.
#define	GPIO_AF_I2C1
	AF 4 selection.
#define	GPIO_AF_SPI1
	AF 5 selection.
#define	GPIO_AF_SPI3
	AF 6 selection.
#define	GPIO_AF_USART1
	AF 7 selection.
#define	GPIO_AF_UART4
	AF 8 selection.
#define	GPIO_AF_CAN1
	AF 9 selection.
#define	GPIO_AF_OTG_FS
	AF 10 selection.
#define	GPIO_AF_ETH
	AF 11 selection.
#define	GPIO_AF_FSMC
	AF 12 selection.
#define	GPIO_AF_DCMI
	AF 13 selection.
#define	GPIO_AF_EVENTOUT
	AF 15 selection.

Enumerations
enum	GPIOMode_TypeDef {   GPIO_Mode_IN,   GPIO_Mode_OUT,   GPIO_Mode_AF,   GPIO_Mode_AN }
	GPIO Configuration Mode enumeration. More...
enum	GPIOOType_TypeDef
	GPIO Output type enumeration.
enum	GPIOSpeed_TypeDef {   GPIO_Speed_2MHz,   GPIO_Speed_25MHz,   GPIO_Speed_50MHz,   GPIO_Speed_100MHz }
	GPIO Output Maximum frequency enumeration. More...
enum	GPIOPuPd_TypeDef
	GPIO Configuration PullUp PullDown enumeration.
enum	BitAction
	GPIO Bit SET and Bit RESET enumeration.

Detailed Description

This file contains all the functions prototypes for the GPIO firmware library.

Author

MCD Application Team

Version

V1.0.0

Date

30-September-2011

Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f4xx_gpio.h.
