Collaboration diagram for Audio:

Enumerations
enum	note_e

Functions
status_e	Audio_Init (uint32_t fs, uint32_t sample_size)
	Audio initialization. More...

status_e	Audio_PlaySin (uint16_t freq, uint16_t duration)
	Play a sine sound at a given frequency. More...

status_e	Audio_SetVolumeSpeaker (uint8_t volume)
	Set the volume for speaker output. More...

status_e	Audio_SetVolumeHeadphone (uint8_t volume)
	Set the volume for headphone output. More...

status_e	Audio_Record (int16_t *dataBuf, uint32_t length)
	Record a sound (polling mode) More...

status_e	Audio_Play (const int16_t *dataBuf, uint32_t length)
	Play a sound (polling mode) More...

status_e	Audio_DMA_Play (const void data, uint32_t length, void(done)(const void *))
	Play a sound (DMA version) More...

status_e	Audio_DMA_Play_Status (void)
	Is Audio_DMA_Play finished? More...

status_e	Audio_Stream_Play_Init (uint32_t length, void buffer0, void buffer1, void(done)(const void ))
	Audio stream play initialization. More...

status_e	Audio_Stream_Play (const void *data)
	Audio stream play buffer. More...

status_e	Audio_Stream_Play_Pause (void)
	Audio stream play pause. More...

status_e	Audio_Stream_Play_Stop (void)
	Audio stream playing stop. More...

status_e	Audio_Stream_Play_Status (void)
	Is Audio_Stream_Play ready for the next buffer? More...

status_e	Audio_Stream_Record_Init (uint32_t length, void buffer0, void buffer1, void(done)(const void ))
	Audio stream record initialization. More...

status_e	Audio_Stream_Record_Stop (void)
	Audio stream record stop. More...

status_e	AudioSTM32_Play (const int16_t *dataBuf, uint32_t length)
	Play a sound (polling mode) More...

status_e	AudioSTM32_Stream_Play_Init (uint32_t length, void buffer0, void buffer1, void(done)(const void ))
	Audio stream initialization. More...

status_e	AudioSTM32_Stream_Play (const void *data)
	Audio stream play buffer. More...

status_e	AudioSTM32_Stream_Play_Stop (void)
	Audio stream stop. More...

status_e	AudioSTM32_Stream_Play_Status (void)
	Is AudioSTM32_Stream_Play ready for the next buffer? More...

Detailed Description

== Full-duplex notes == Full duplex is possible usint Audio_Stream_* function.

Audio_Stream_Play_Init must be called before Audio_Stream_Record_Init
Audio_Stream_Stop will "pause" audio recording, but Audio_Stream_Pause can be used.
See also
trunk/demos/audio_stream_demo

Enumeration Type Documentation

enum note_e

Music notes

Definition at line 193 of file audio.h.

Function Documentation

status_e Audio_Init	(	uint32_t	fs,
		uint32_t	sample_size
	)

Audio initialization.

Parameters

fs	the sampling frequency (96000,48000,44100,32000,16000,8000)
sample_size	(32,24 or 16 bit)

Returns: NO_ERROR for no problem

Definition at line 140 of file audio.c.

References Audio_SetVolumeHeadphone(), Audio_SetVolumeSpeaker(), ERROR_BAD_PARAM, NO_ERROR, and setup.

Here is the call graph for this function:

status_e Audio_PlaySin	(	uint16_t	freq,
		uint16_t	duration
	)

Play a sine sound at a given frequency.

Parameters

freq	Frequency of sine.

See also: note_e

Parameters

duration duration in milliseconds

Returns: NO_ERROR for no problem

Definition at line 184 of file audio.c.

References gen_sine_wave_float(), init_sine_wave_float(), NO_ERROR, setup, time_elapsed(), and time_set_timeout_ms().

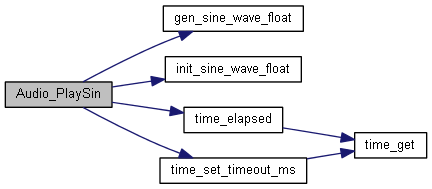

Here is the call graph for this function:

status_e Audio_SetVolumeSpeaker ( uint8_t volume )

Set the volume for speaker output.

Parameters

volume Volume to set (0 is mute, 255 is max)

Returns: NO_ERROR for no problem

Definition at line 240 of file audio.c.

Referenced by Audio_Init().

Here is the caller graph for this function:

status_e Audio_SetVolumeHeadphone ( uint8_t volume )

Set the volume for headphone output.

Parameters

volume Volume to set (0 is mute, 255 is max) *

Returns: NO_ERROR for no problem

Definition at line 245 of file audio.c.

Referenced by Audio_Init().

Here is the caller graph for this function:

status_e Audio_Record	(	int16_t *	dataBuf,
		uint32_t	length
	)

Record a sound (polling mode)

Parameters

dataBuf	Data buffer of sound to record
length	byte length of the buffer

Returns: NO_ERROR for no problem

Definition at line 235 of file audio.c.

status_e Audio_Play	(	const int16_t *	dataBuf,
		uint32_t	length
	)

Play a sound (polling mode)

Parameters

dataBuf	Data buffer of sound to record
length	byte length of the buffer

Returns: NO_ERROR for no problem

Definition at line 230 of file audio.c.

References AudioSTM32_Play().

Here is the call graph for this function:

status_e Audio_DMA_Play	(	const void *	data,
		uint32_t	length,
		void()(const void )	done
	)

Play a sound (DMA version)

Parameters

data	the buffer
length	byte length of the buffer
done_handler	Function to be called when the sound has finished (will be called from interrupt context), can be NULL.

Returns: NO_ERROR for no problem, ERROR_AGAIN when busy, another error if any

See also: Audio_DMA_Play_Status

Definition at line 45 of file audio_dma.c.

References Audio_Stream_Play_Init(), and NO_ERROR.

Here is the call graph for this function:

status_e Audio_DMA_Play_Status ( void )

Is Audio_DMA_Play finished?

Returns: ERROR_AGAIN if the sound has not finished playing, NO_ERROR when finished

See also: Audio_DMA_Play

Definition at line 60 of file audio_dma.c.

References ERROR_AGAIN, and NO_ERROR.

status_e Audio_Stream_Play_Init	(	uint32_t	length,
		void *	buffer0,
		void *	buffer1,
		void()(const void )	done
	)

Audio stream play initialization.

Parameters

length	byte length of each buffer
buffer0	the first buffer to be played
buffer1	the second buffer to be played
done	the handler called after a buffer has been played. Called in interrupt context. can be NULL if not used

Returns: NO_ERROR for no problem

Warning: buffer0 and buffer1 are expected to exist until

See also: Audio_Stream_Play_Stop

The DMA will play alternatively buffer0 and buffer1.

See also: Audio_Stream_Play will be used to replace the next buffer.

The stream will be Paused after this function

Definition at line 97 of file audio.c.

References AudioSTM32_Stream_Play_Init().

Referenced by Audio_DMA_Play().

Here is the call graph for this function:

Here is the caller graph for this function:

status_e Audio_Stream_Play ( const void * data )

Audio stream play buffer.

Parameters

data	buffer to be played

Returns: NO_ERROR for no problem

See also: Audio_Stream_Status

Warning: This function will block unless Audio_Stream_Play_Status has returned NO_ERROR

Definition at line 117 of file audio.c.

References AudioSTM32_Stream_Play().

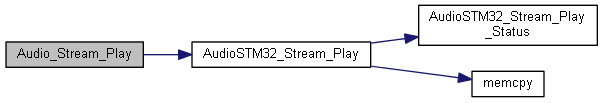

Here is the call graph for this function:

status_e Audio_Stream_Play_Pause ( void )

Audio stream play pause.

Returns: NO_ERROR for no problem

See also: Audio_Stream_Play for (re-)starting playback

This function will in fact fill the output buffers with zeroes, effectively muting the output.

Definition at line 112 of file audio.c.

status_e Audio_Stream_Play_Stop ( void )

Audio stream playing stop.

Returns: NO_ERROR for no problem

Definition at line 102 of file audio.c.

References AudioSTM32_Stream_Play_Stop().

Here is the call graph for this function:

status_e Audio_Stream_Play_Status ( void )

Is Audio_Stream_Play ready for the next buffer?

Returns: ERROR_AGAIN if not ready, NO_ERROR when ready

See also: Audio_DMA_Play

Definition at line 107 of file audio.c.

References AudioSTM32_Stream_Play_Status().

Here is the call graph for this function:

status_e Audio_Stream_Record_Init	(	uint32_t	length,
		void *	buffer0,
		void *	buffer1,
		void()(const void )	done
	)

Audio stream record initialization.

Parameters

length	byte length of each buffer
buffer0	the first buffer to be played
buffer1	the second buffer to be played
done	handler called with the data recorded. Called in interrupt context
